Amtrak Engine 120 Pictures from John Erickson
Pictures
Click on an image for a larger view.
-

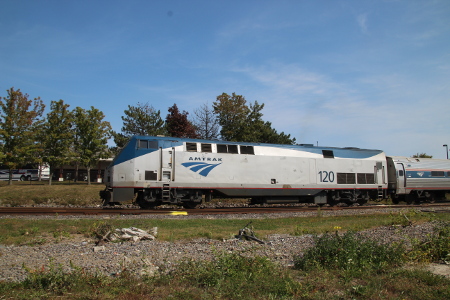

AMTK 120 with Downeaster 681 at Portland Station on September 24th of 2020.
Photo by John Erickson.AMTK 120 with Downeaster 681 at Portland Station on September 24th of 2020.
Photo by John Erickson. -

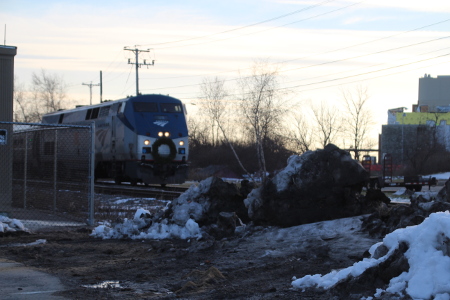

20201211 144603 AMTK 120 AMTK 683 Congress St.JPG AMTK 120 with Downeaster 683 at Congress Street in Portland on December 11th of 2020.
Photo by John Erickson.20201211 144603 AMTK 120 AMTK 683 Congress St.JPG AMTK 120 with Downeaster 683 at Congress Street in Portland on December 11th of 2020.
Photo by John Erickson.
| Number | Marks | Current Disposition | Eng. Serial No. | Eng. Built: | Date Acquired: |
|---|---|---|---|---|---|
| 120 | AMTK | Active | 49972 | 9/1997 | 9/1997 |
| Eng. Type: | Engine Maker: | Trucks: | Horsepower: | Weight: | Prime Mover: |
| P42DC | GE | B-B, high speed | 4,250 | 268,240 lb | 7FDL16, 4 stroke |
| Traction Motors: | Series: | Air Compressor: | Tractive Effort (starting): | Head-End Power: | Speed: |
| 4 - GE752AH DC motors | Genesis I | 1 - WABCO 3CDCLA | 63,000 lbf | 1 GTA33 alternator, 800 kW, 480 V | 110 mph |
This engine data is primarily from the builders data on the side of the locomotives with inclusions from The Diesel Shop, Wikipedia and others.
